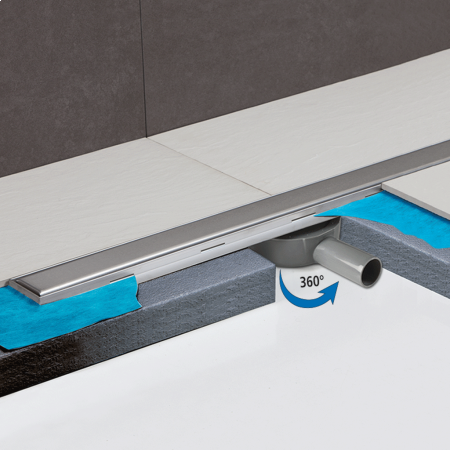

Linear drain with horizontal outlet in stainless steel AISI 304 for shower trays, both for renovation and new construction. Adjustable by side legs at various heights, from 6.7 cm to 9.6 cm. The drain can be placed either in the centre of the shower tray or next to the wall. Equipped with a removable siphon for easy and convenient cleaning. The drain has an external frame that allows the use of any flooring up to a maximum height of 14 mm. Available in three lengths (60, 70 and 80 cm).
A - Grating
B - Waterproofing foil collar width 0.30m
C - Removable siphon
D - Drainage channel
E - Adjustable feet 67-96 mm
F - Connection DN 40 to DN 50

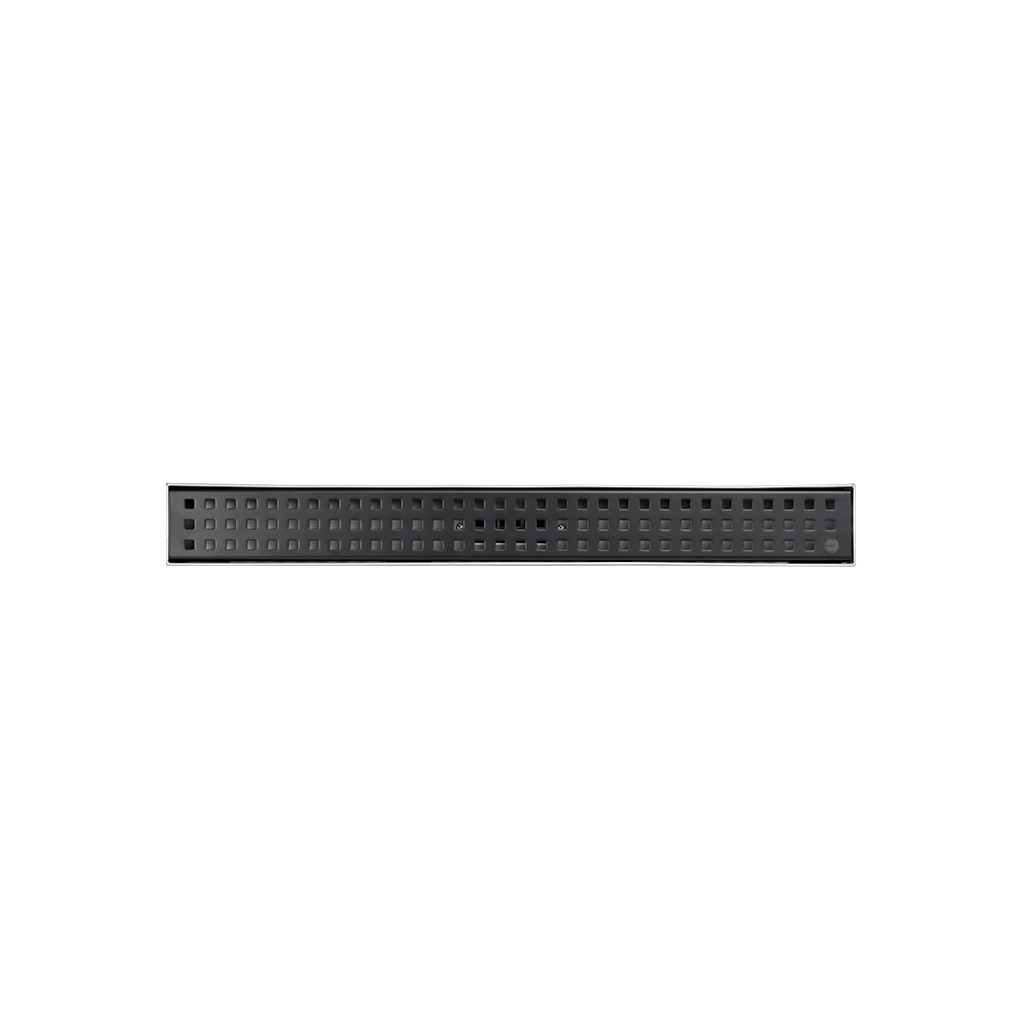

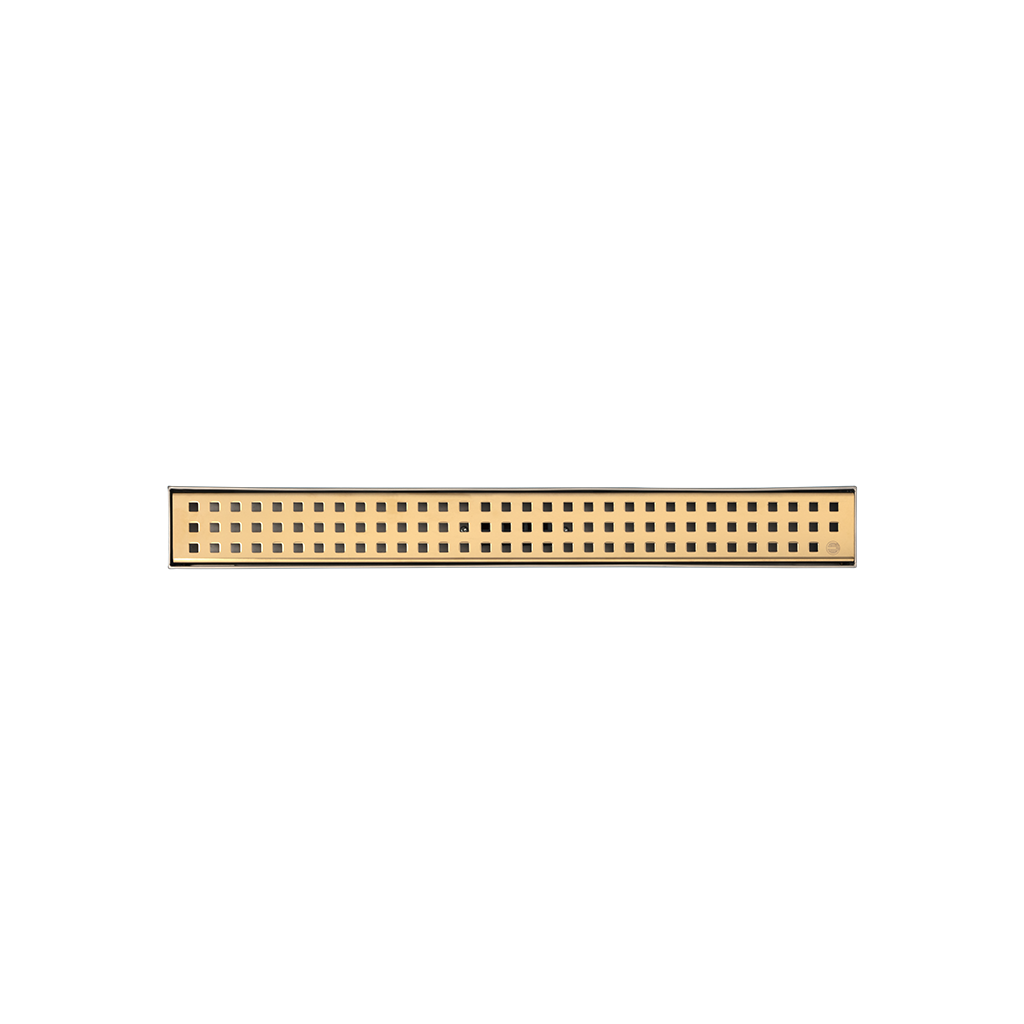

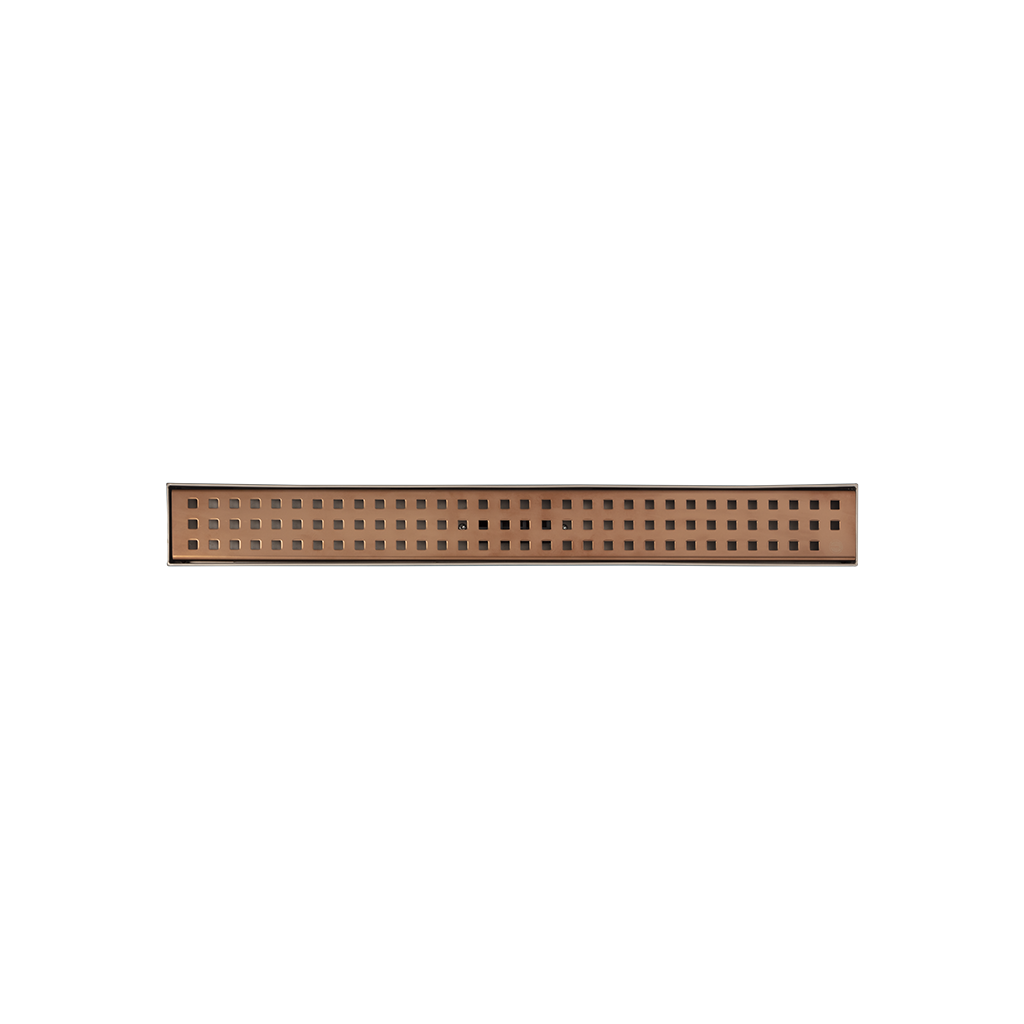

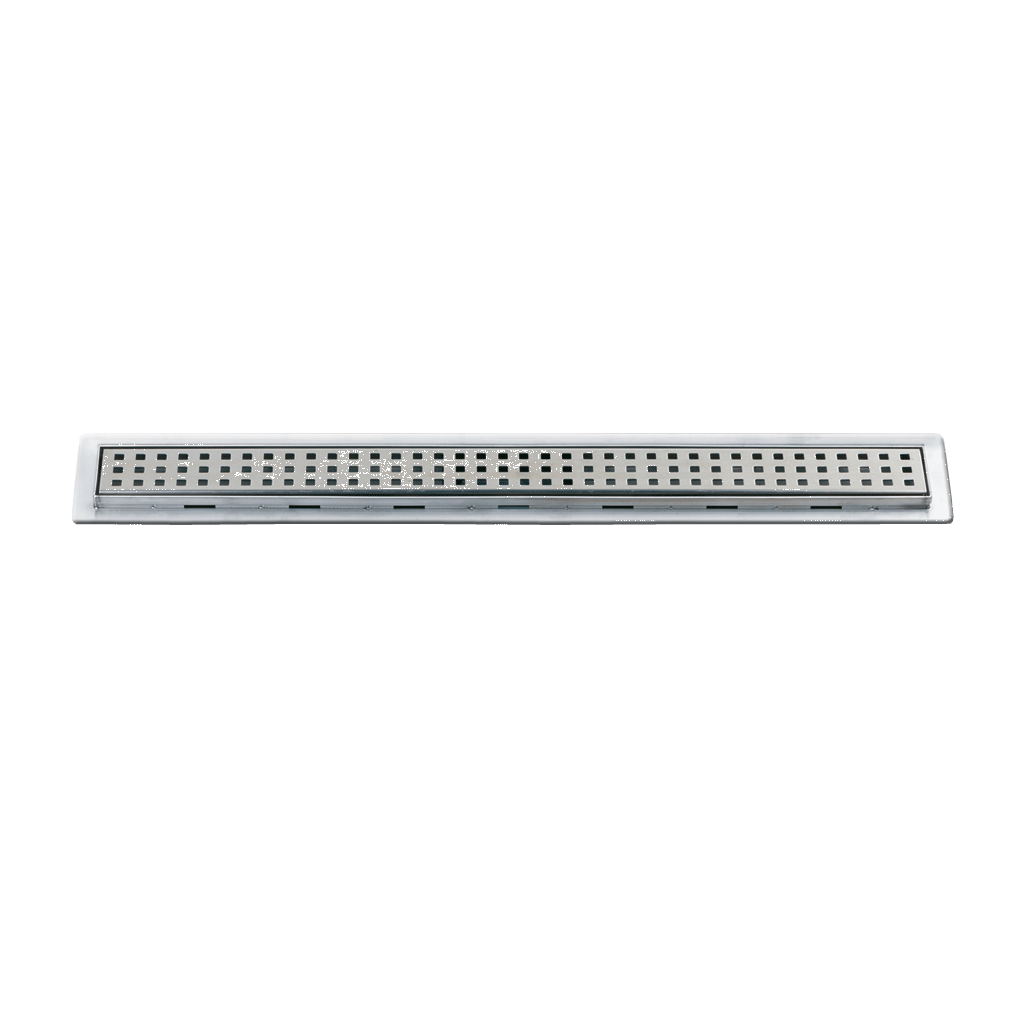

R1: Square grating.
Evacuation flow rate 26 litres/minute
